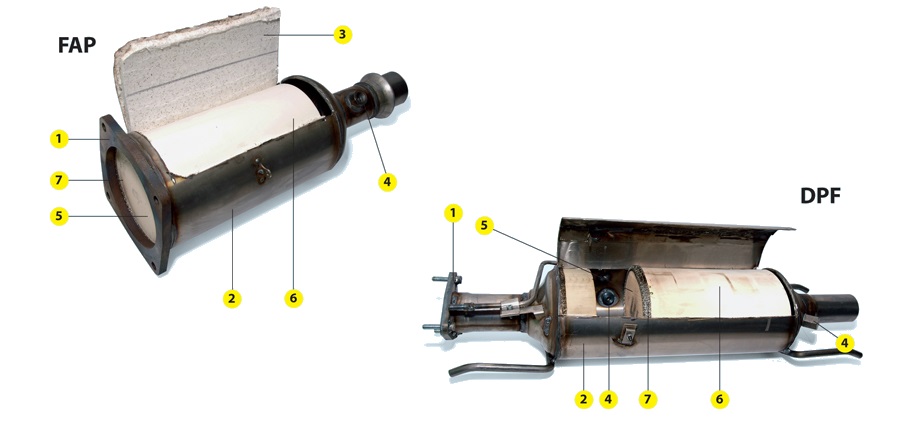

DPF

FAP / DPF: THE FLANGE HAS THE SAME DIMENSIONS AND QUALITY AS THE ORIGINAL EQUIPMENT UNIT
• Perfect fitting
FAP / DPF: STAINLESS STEEL BOX

• avoids the detachment of metal particles, which ruin the monolith
• soundproof
• protects the unit from impacts

FAP / DPF: HIGH QUALITY ELASTIC PROTECTION
• isolates the monolith from the metal
• compensates the thermal expansions
• protects the monolith from the vibrations
FAP / DPF: HOLES SUITABLE FOR
• electronic connections
• pressure connections


FAP / DPF: CERAMIC MONOLITH WITH THE SAME CHARACTERISTICS OF THE ORIGINAL EQUIPMENT UNIT
• low back-pressure
• fast heating
DPF: MONOLITE CERAMICO CON LE STESSE CARATTERISTICHE DELL’ORIGINALE:
• contropressione bassa
• riscaldamento veloce
• constant operating temperature
FAP / DPF: METALLIC BAND OF BIG DIMENSIONS
• protection from vibrations and damages against the external metal box
DPF

What it is and how does it works
The European Community, in order to decrease the emission of soot and polluting particles, has obliged the producers of diesel vehicles to furnish them of FAP or DPF. Contrarily to a catalytic converter, a FAP / DPF doesn’t allow the gases to freely flow because its channels are alternatively closed: the gases go out after they have flown through the porous walls and they have left the soot inside the filter.
The FAP / DPF is thought to collect the soot, and needs to be frequently cleaned in active or passive way to avoid its complete blocking.
Passive cleaning is done during the longest journeys, when the temperature of the FAP / DPF is higher and so the soot naturally burns.
When the soot level takes up to the 45% of the filter volume, the vehicle starts autonomously the active cleaning slightly modifying the fuel injection, which cause a raise of temperature inside the FAP and the soot burns. Some vehicles (especially Citroën and Peugeot) use an additive which helps the burning of the soot, so that the FAP can be cleaned also by lower temperatures.

Before the replacement:
It is necessary to solve the possible malfunctions of the vehicle:
1 wrong electronic regulation or wrong balance between air / fuel
2 full the additive (for the FAP)
3 working of all the sensors and integrity of the connection cables

During the replacement:
1 always use new rubber.
2 put the FAP / DPF perfectly in line, to avoid vibrations or abnormal pressures.
3 do not to hit the FAP / DPF with metal hammers or other hard tools which could break the monolith
4 as sealant use silicone and not the normal paste for the exhaust system
5 change the motor oil
6 carefully verify the new emissions to solve immediately eventual problems.
7 update the vehicle computer with the specific diagnostic tools

Guarantee:
Are not covered by guarantee all the damages caused by external factors as:
1 monolith braking caused by anomalous vibrations or impacts due to accidents or uneven road surfaces.
2 use of oil which doesn’t comply with the specifications given by the vehicle producer
3 obstruction of the monolith caused by the use of paste instead of using the correct sealant silicone
4 obstruction of the monolith caused by oil or antifreeze liquid contamination

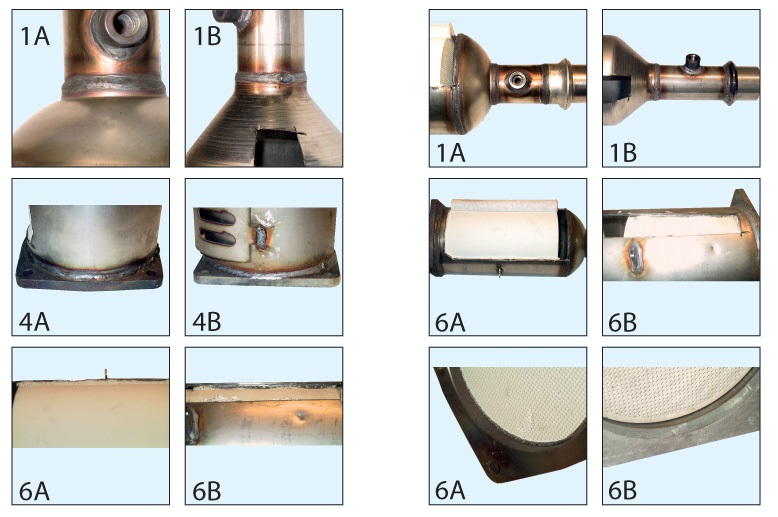

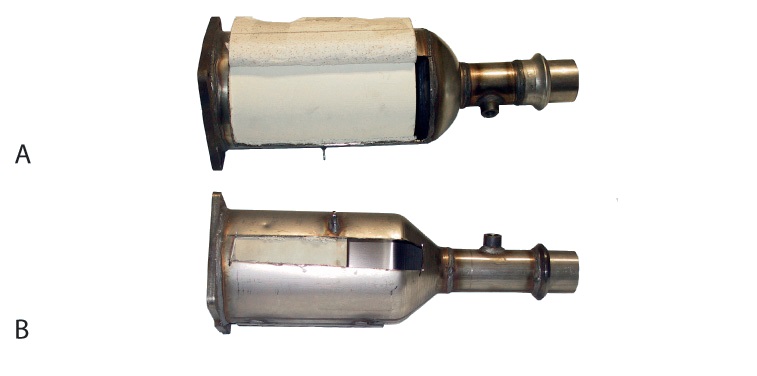

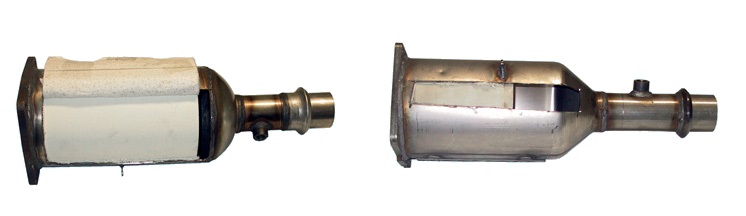

Quality comparison analysis with the competitors


COMPETITOR
Par
Description
17.00051
390121
71
01A Box lenght mm 335 300
72
01B Flange thickness mm 12,0 10,0
73
01C Weight Kg. 6,0 4,6
74
02A E.P. dimensions mm
75
02B ExIt P.dimensions mm TIØ60x1,2 TIØ60x1,5
76
03A E.P.Bend
77
03B Exit E.P. Bend
78
04A Flange Welding manual Robot
79
05A Body Thickness mm 1,5 1,5
80
05B Body Material Inox Inox
81
06A Internal Parts Nr. 1 1
82
06B Int.Parts Dimens. Mm 1^element RO Ø144x254 RO Ø143x155
83
06C Int. Volume dm3 1^element 4,13 2,48
84
06D Mat/Impregnation 1^element Cordierite/not saturated Cordierite/not saturated
85
06E Protection Pad 1^element yes yes
86
06F Wire Mesh 1^element yes no
87
06G Int.Parts Dimens. Mm 2^element
88
06H Int. Volume dm3 2^element
89
06I Mat/Impregnation 2^element
90
06L Protection Pad 2^element
91
06M Wire Mesh 2^element
92
07A Mountign Kit no yes
93
08A Certificate Homologation yes no
94
08B Certificate of Guarantee yes yes
